When planning a hard barricading setup, pole length can make a noticeable difference to how efficiently the system fits the work area. Longer poles can cover open areas with fewer sections, while shorter poles make it easier to work around confined spaces and changing layouts.
Eureka Heavy Duty Barricade Poles are available in 2.9m and 5.8m lengths. Both sizes form part of the same modular hard barricading system, allowing sites to select one length or combine both to suit the job.
So, which length should you choose?
When 5.8m Barricade Poles Make Sense
The 5.8m barricade pole is well suited to long, relatively straight barricade runs. Because each pole covers more distance, fewer sections may be needed across large work areas.
| 5.8m Barricade Poles Applications |
| Long excavations or trenches |
| Large maintenance zones |
| Plant and equipment areas |
| Civil and infrastructure works |
| Open sections of mining and resource sites |
Using longer poles can help create a clean, continuous run without introducing unnecessary changes in direction. They are a practical choice where the work area is open and there is sufficient room to position and handle the components.
The surrounding site still needs to be considered. Access routes, changes in ground level, corners and nearby structures may interrupt an otherwise straight run. In those situations, a layout made entirely from 5.8m poles may be less practical than a mixed configuration.
Where 2.9m Barricade Poles Work Better
The 2.9m barricade pole provides greater flexibility in tighter or more complex work areas. Its shorter length makes it easier to form smaller barricade sections and fit the system around fixed site features.
| 2.9m Barricade Poles Applications |
| Confined work areas |
| Short barricade runs |
| Irregularly shaped zones |
| Areas with frequent corners or changes in direction |
| Maintenance work around existing infrastructure |
| Smaller access-controlled areas |
Shorter poles can also help when the barricading must closely follow the shape of the hazard or work zone. Rather than extending the boundary farther than necessary, the site can build a more precise configuration around the area that needs to be restricted.
Can 2.9m and 5.8m Poles Be Used Together?
Yes. Eureka’s 2.9m and 5.8m Heavy Duty Barricade Poles are compatible within the same system.
For many sites, a combination of both lengths will provide the most practical result. The 5.8m poles can cover longer straight sections, while 2.9m poles can be used around corners, access points, tighter spaces and changes in the work-zone boundary.
This mixed approach is particularly useful on projects where the barricading layout changes over time. As work progresses, existing components can be rearranged to suit the next stage rather than forcing the site to use one pole length for every application.
Pole Length Is Only Part of the Layout
Choosing a pole length is important, but it is not the only decision involved in planning hard barricading.
The leg configuration will also affect the shape of the system. Fixed twin rail A-Frame legs are suited to straightforward continuous runs, while swivel legs allow the barricading to form corners, bends and intersections. A heavy duty barricading gate can be incorporated where authorised personnel need a designated access point.
Before selecting components, consider:
- The total distance to be barricaded
- The number of corners and direction changes
- Available space around the work area
- Ground conditions and changes in level
- Required pedestrian or equipment access
- How often the barricading will be moved
- How poles and legs will be stored and transported

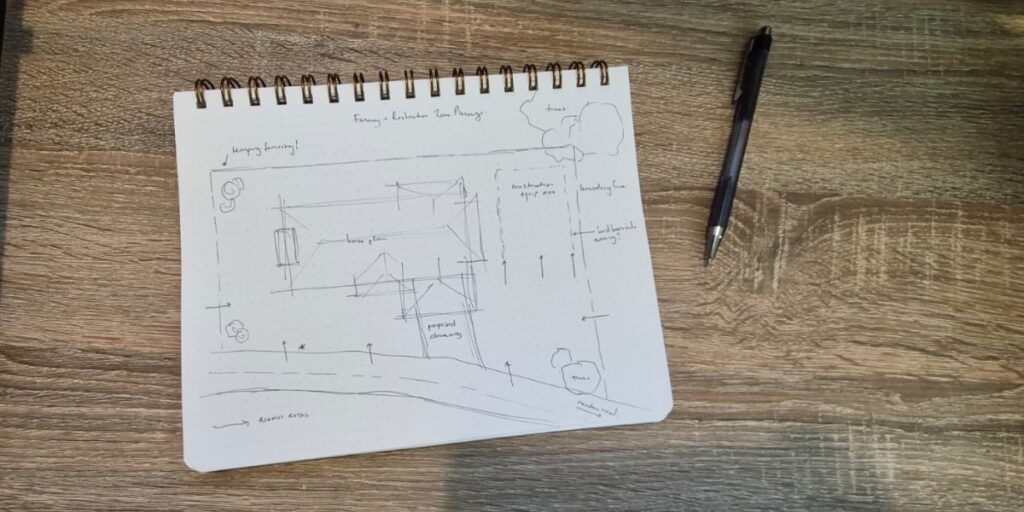

A simple site sketch can help identify where longer sections are efficient and where shorter sections will provide better control.
Think Beyond the Initial Installation
The best pole length is not always determined by the first setup alone. On active mining, construction and civil sites, work zones can expand, contract or move as the project develops.
If the system will be reconfigured regularly, having both 2.9m and 5.8m poles available gives crews more options. It can reduce the need for improvised layouts and make it easier to maintain a clear, consistent barricade around changing work areas.
Storage and transport should also be planned from the beginning. Eureka offers purpose-built pole stillages for both 2.9m and 5.8m barricade poles, helping keep components organised between installations and ready for relocation.
Choose the Right Combination for Your Site
Choose 5.8m barricade poles for efficient coverage across long, open sections. Choose 2.9m poles where the layout is shorter, tighter or more complex. Where a work area includes both conditions, a combination of the two will often provide the most adaptable setup.
Explore Eureka’s Hard Barricading System or contact our team for help working out the right mix of poles, legs, gates and storage for your site.
